WESTBROOK COOKERS
STANDARD 13 AMP ELECTRIC RENOVATED AGA 2, 3 OR 4 OVEN

AVAILABLE IN A COMPLETED AGA OR AS A CONVERSION TO YOUR OWN AGA

Buying a 13 amp Renovated Electric Aga cooker is the best way to obtain an environmentally friendly cooker that saves you money, and as a result we offer fully approved 13amp Aga cooker models. We have sold several thousand of these particular cookers.

  • Our standard 13 amp Electric Renoavted Aga cookers run on a (13amp or 2.5KW) simple fused spur. The cooker should have its own dedicated circuit.
  • All internal castings and workings remain the same but in place of a standard Gas or Oil burner an electric element is fitted which means your renovated Aga will perform in exactly the same way as a normal Gas or Oil one, but with advantages. You will still get the ambient heat into the kitchen but is more controllable and can be run steadily at lower settings if required.
  • With electric there are no longer any combustion products to get rid of and any minor emissions of steam and/or cooking smells can either be vented into the room or conducted to the outside by an external extraction fan.
  • Ongoing maintenance is very minimal and there is no regular servicing requirement. We only recommend a check every 2 years.
  • Aa a chimney or flue is no longer required the heat loss due to that no longer exists.
  • Our renovated 13 amp electric Ags can be sited anywhere in your property.
  • You can utilise a standard timer between the fused board and the cooker in order to switch it on and off when you wish.

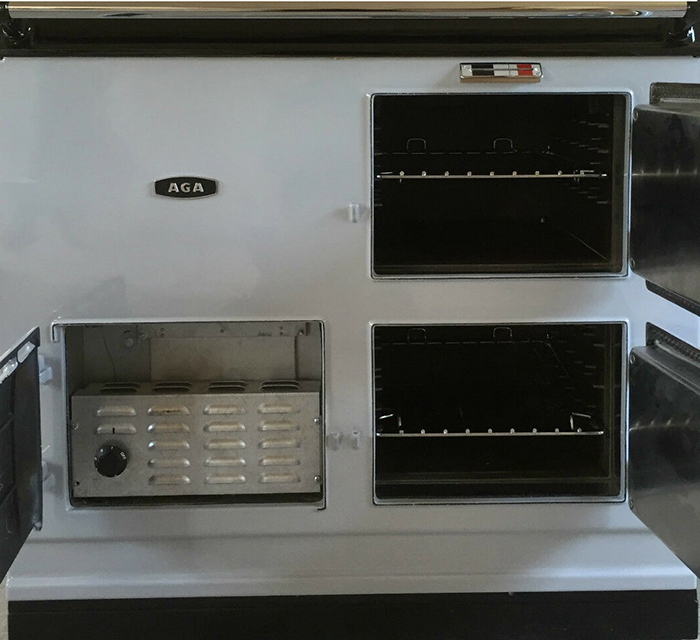

TYPICAL 2 OVEN RENOVATED 13 AMP AGA COOKER

Running Costs

Approximate figures for a cooker running 24 hours a day, 7 days a week at 75% power ( i.e. Circa 180C in the Roasting Oven ) are:

Two-oven – 220 (KW/h) per week…………

Circa £27.00 per week

Four-oven – 270 (KW/h) per week………..

Circa £32.00 per week

Wiring

The 13 amp renovated Aga needs its own circuit from the consumer unit. A 16amp circuit breaker should be used and a 2.5mm cable to a switched, fused spur point to the side of the cooker (within 2 metres but not behind the cooker).

WESTBROOK COOKERS
CONTROLLABLE 13 AMP ELECTRIC RENOVATED AGA

AVAILABLE IN A COMPLETED AGA OR AS A CONVERSION TO YOUR OWN AGA

We can supply a controllable renovated 13 amp electric Aga range that can be used with a timer or even a “Wemo” switch to enable the cooker to be switched on and off remotely by mobile phone.

By radically re-engineering the inner construction without taking away the benefits you love. By introducing the iconic Aga range to the 21st century with an electric kit manufactured in Devon by Oilwarm Limited we are able to:

  • Reduce running costs by up to 80%
  • Enable it to be fume free
  • Make it flexible to operate
  • Give it easy to use controls (now able to switch oven ON & OFF remotely with Wemo APP and mobile phone)
  • Reduce requirement for servicing
  • Have no flue requirements
  • Control comfort levels – warm in winter / cool in summer
  • Reduce ”heat up” and improve ”recovery” times

REASONS TO BUY A CONTROLLABLE RENOVATED ELECTRIC AGA

  1. Total flexibility
  2. No gas / carbon monoxide leaks
  3. Ability to install anywhere in the kitchen as no gas or oil flue requirement
  4. No cost of flue or oil tank
  5. Customers with PV / wind turbine can make use of their electricity
  6. Ability to use in summer without constant oppressive heat – yet will keep you warm in winter when you want it
  7. Holiday / second home owners are able to simply switch on and off .
  8. Improved heat up times

HOW IT WORKS

“…If you want you can run your renovated Aga or other range just as you used to BUT you have so much more flexibility available to you now…”

Cooking on it…

1. Independent cooking:

The hobs work independently of each other as does the top oven.

They can all be independently heat controlled meaning you can be frying on one hob, simmering on the other while roasting in the oven or just have on whatever you need when you want it.

“…So in summer you don’t need to suffer oppressive heat from the ovens if all you want is to use the hob…”

2. Improved Heat up times

Heat up times are vastly improved –

  • Frying on either hob takes 10 minutes from a cold hob
  • Baking at 200 deg c takes the top oven 1 hour 35 minutes from cold to be ready “

… cooking is so much easier as you have more precision with temperatures…”

3. Control Panel

No longer do you need the mercury readout – you control each hob and the top oven from simple and easy to operate controls behind the bottom left hand door (2 Oven Aga)

The hobs have several settings ranging from simmering to boiling temperatures.

“…you can select a specific temperature in your top oven insuring baking etc is so much more accurate…”

4. Timing your oven to come on

You can chose to operate the oven by timer, again to suit yourself, by switching the oven on 1 hour 35 min’s before you need to e.g.

  1. Getting up to a warm kitchen
  2. Cooking the family meal in the evening
  3. Cooking your porridge overnight to be ready for when you get up

5. Remote operation

You can switch the oven ON & OFF remotely using the WEMO switch and App on your mobile phone. Great if you are away from home and want the oven up to temperature for when you arrive back. Simply switch ON with the App when 2 hours away from home.

6. Money saving

As you are only switching on and using energy to cook when you need it you are not paying unnecessarily for the oven to be hot when you are asleep, at work etc

Detailed Engineering Information

1. General

…so how does it work…

…by converting the heat source to electric one is able to apply the energy where it is needed and do away with the large cast mass of the combustion chamber and flue ways.

One element powers the ovens (2 oven) and the hobs are independently controlled by their own thermostats and separate elements. Removing a large part of this unwanted mass of cast  radically improves the heat up times i.e. oven from cold takes 1hour 35 min’s to reach 200 deg c. The hobs are now totally independent of the ovens and the reduced mass means you can be frying within 10 minutes from switching either hob on to suit.

The oven temperature is now able to be controlled by a system used on commercial ovens and kilns which is much more robust. You are now able to cook with pinpoint temperature control and as a result with much improved efficiency.

The temperature you set for the top oven is the temperature you get within a few degrees. This is a big improvement on the old operating system where differences have been recorded of up to 20% of the set temperature due to the slow recovery times of the conduction method and the drag / tolerance of the thermostat.

The LED readout shows the temperature of the top oven and the mercury is no longer needed for temperature monitoring.

For 4 oven range cookers an extra element with its own control is added.

2. Electricity Supply

2 x 13 amp 3 pin plugs are required. (2 separate 13 amps switched fused supplies)

Timers

You can chose to use 1 or 2 timers, one for the ovens and a second for the hobs if required. These are available on the open market from a large selection to suit your preferences. If you are going away unplug the timer on the oven and insert the WEMO switch if required. This can be purchased as an extra online or we can supply with the cooker.

COSTS

Running Costs

Each household will use their renovated Aga differently so it is hard to estimate costs of usage.

However, based on 2 working adults using a renovated 2 oven Aga over 12 months, using it efficiently (i.e. only running the Aga when required) the average daily running cost was found to be less than a £1 per day. The electric unit cost of 15p including vat was used in this calculation.*

The converted Aga was used as follows:

2011

AUTUMN 3 months
Timed operation on times 06:00 – 09:00 / 16.00 – 21.30

454Kw used

WINTER 3 months
With oven on 24 hours a day

708Kw used

SPRING 3 months
Timed operation on times 06.00 – 09.00 / 16:00 – 21.30

615Kw used

2012

SUMMER 3 months
switched on when needed for cooking

287Kw used

The hobs were used only when required, this gave a total annual usage of 2064KW used.

At a rate of 15p* per KW this equated to £310.

HOBS

From cold to 365 deg c, 30 minutes

7KW usage

OVEN

From cold to 200 deg c, 1 Hr 35 minutes

2.7KW usage

From cold to 235 deg c, 2 Hr 2 minutes

3.6 KW usage

*the price of electricity does vary and the figures are based on average prices at the time of running the experiments.

HOW TO USE…… MY CONVERTED Aga

Tips on using converted Aga’s particularly helping you to adapt from previous ways of “doing things”.

What a standard Aga user is used to What to do now with the electric Renovated Aga
Cook stews etc. in bottom oven Use top oven for this now Select appropriate temperature (this will vary for everyone) e.g. 100 deg c etc. Cook for your normal time

For the first few occasions you will need to experiment to achieve similar results as before (exact temperatures can’t be recommended as each Aga’s bottom oven will have been different)

You are likely to want to use your bottom oven differently now- see below

Roasting in top oven Still do this in top oven – just select appropriate temperature as per your recipe e.g. 200 deg c etc. If you want to quickly roast off (not fully cook) edges of roast potatoes just place baking dish on bottom of oven – need to watch this as edges will catch quickly
Baking in top oven Still do this in top oven – just select desired temperature and wait for it to reach heat.  You should find this will cook your cakes to more or less the recipes timescale’s
What can I use my
bottom oven for?
This is not adjusted by a temperature control but reacts to the heat of the top oven.  An example of temperatures you can expect is as follows

TOP OVEN BOTTOM OVEN
160 deg c 100 deg c
200 deg c 140 deg c
230 deg c 160 deg c

So you can use it for:

Warming crockery (care could be very hot depending on temperature of top oven – we put them on for a couple of minutes)

Keeping food warm while finishing off cooking a meal

Grilling!

  1. Once your e.g. lasagne has cooked in top oven place it in top rung of bottom oven to brown off after removing the baking tray.
  2. To do this turn oven temperature up by e.g.20 deg or so and this will make the bottom oven act as a grill
Warm the kitchen This will be down to personal preference – use the following to suit. Use top oven and set temperature to e.g. 160-235 deg c Run left and or right hob at low level e.g. 3-6 The Aga will heat up and can then be left on during winter either all the time or utilise timers on/off to save electricity and costs.
